Drone power system
DP-A-3000

Features

Fully contained, plug-and-play fuel cell module
Up to 3 times flight time compared to batteries
Customizable endurance
Built-in redundancy
Fast refuelling
Lightweight with small footprint
Easily integrated and retrofitted into most industrial grade drones
Zero harmful emissions
IP protected

Potential applications

Inspection
Surveillance
Videography
Delivery

Download D P-A-3000 brochure

DP-A-3000 specifications
Technology	Polymer Electrolyte Membrane fuel cell
Module specifications	Maximum power¹	3kW
	Maximum current¹	120A
	Voltage output	Conforming to 6S LiPo battery
	Startup time	30s at room temperature
	Operating ambient temperature	10 to 35^oC
	Electrical connection	XT-90
Fuel supply	Type	Compressed hydrogen at 350 bar
	Cylinder specifications²	Type IV conforming to EN12245
	Hydrogen purity	Pure hydrogen conforming to SAE J2719
System features	Automatic startup
	Load following
	Integrated fuel cell control and protection
Protection	Over- and under-pressure
	Over temperature
	Over current
	Under voltage

¹At beginning of life conditions.

²Contact us for available cylinder sizes.

Specifications subject to change without notice.

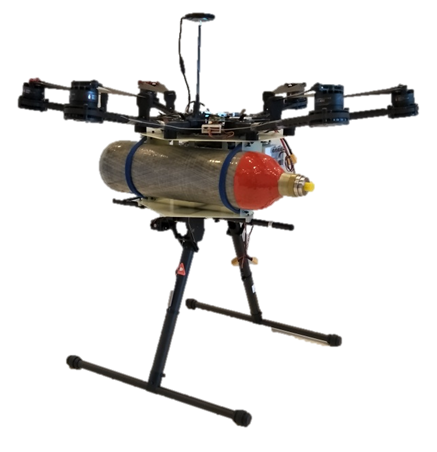

DP-A-3000 sample configurations
Platform	DJI S800	Custom design
Endurance	1 hr	2 hr
Payload	Max. 1 kg	Max. 3 kg
Flight range	30 km	60 km
