Fuel cell module
DP-M-1000

DP-M-1000 picture.PNG



Features

  • Fully contained, plug-and-play fuel cell module
  • Includes all necessary balance-of-plant required for system start-up and operation
  • No bridging energy required for start-up
  • Lightweight with small footprint
  • Easily integrated
  • Daisy chain operation permitted
  • Ideal for hybridization with battery and/or supercapacitors to meet peak power requirements
  • Low thermal signature
  • Quiet operation
  • Zero harmful emissions



Potential applications

  • Fixed-wing and multi-rotor drones
  • Backup power
  • Off-grid power
  • Two- and four-wheel mobility systems
  • Range extender


DP-M-1000 specifications

Technology

Polymer Electrolyte Membrane fuel cell

Module specifications

Maximum power1

1000W

Maximum current1

40A

Voltage output

30.6 to 47.7V

Startup time

10s at room temperature

Operating ambient temperature

10 to 45oC

Dimensions

170 x 147 x 173mm

Mass

2.4kg ± 10%

Electrical connection

XT-90

Fuel supply

Hydrogen purity

Pure hydrogen conforming to SAE J2719

Hydrogen inlet pressure

2 bar

Hydrogen inlet tubing

PU tubing, push fitting OD 6mm

Hydrogen consumption

~13.3 slpm at maximum current

System features

Automatic startup

Load following

Integrated fuel cell control and protection

Daisy chain operation permitted

Protection

Over- and under-pressure

Over temperature

Over current

Under voltage



1 At beginning of life conditions.

Specifications subject to change without notice.

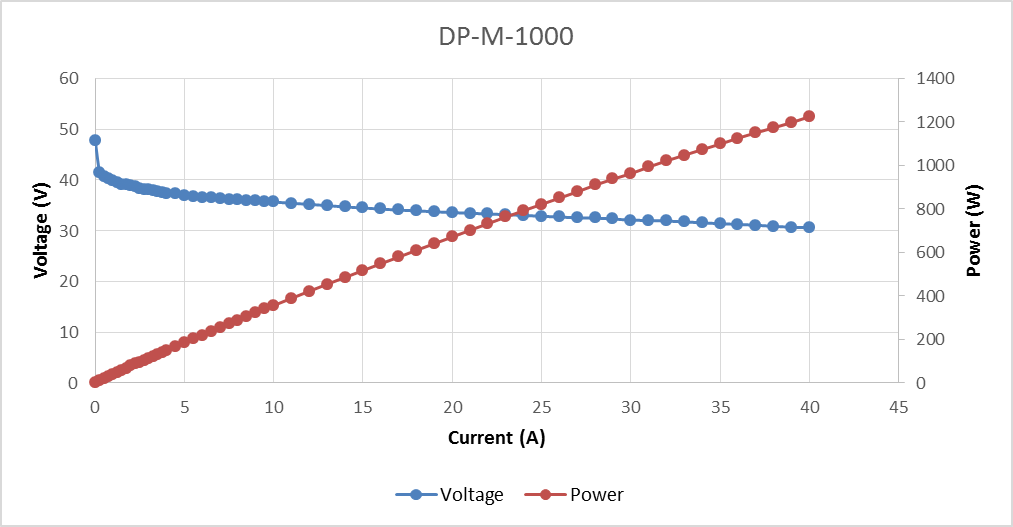

DP-M-1000 polarization curve.png
